MOV Varistor discs with leads

MOV VARISTORS / ZnO VARISTORS WITH LEADS

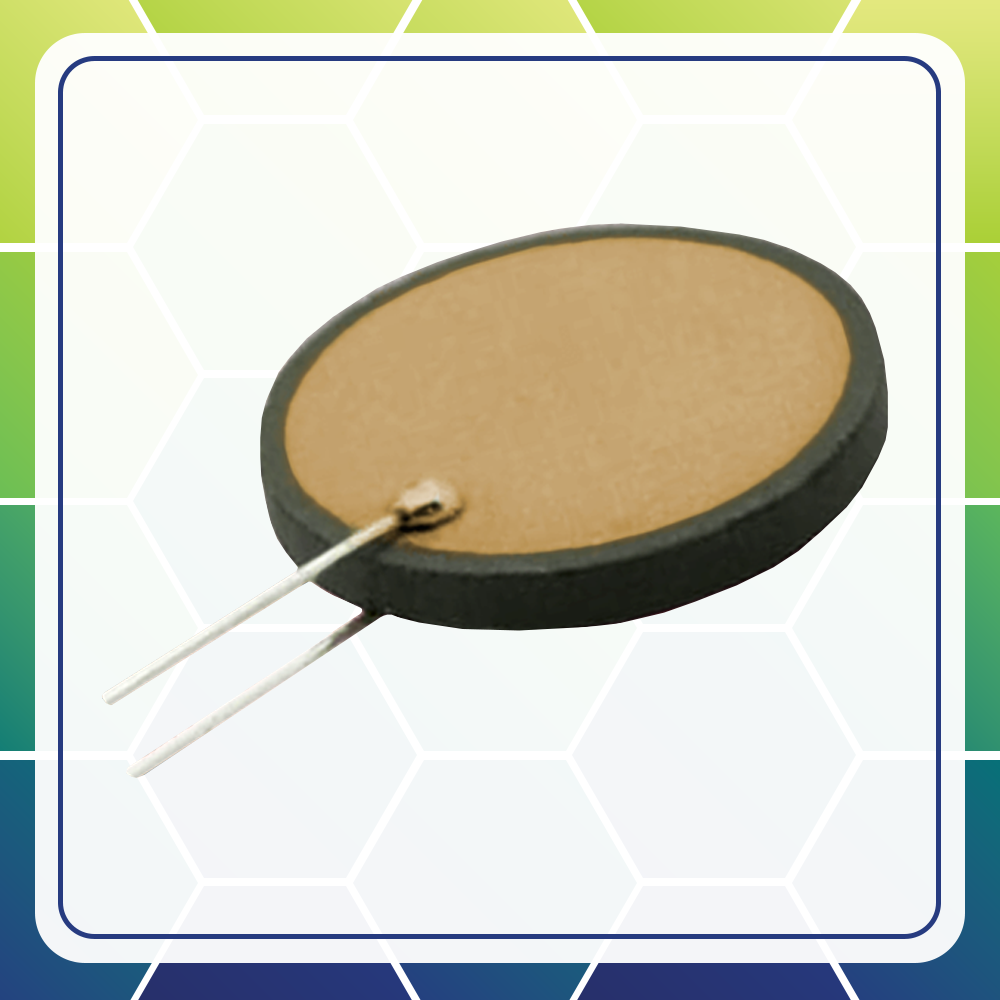

Mov varistors disk leads no coating
We offer a large range of radial leaded disk metal-oxide varistors (MOV’s) manufactured with 90% of ZnO. These MOV’s are mid-range transient voltage suppressors used in surge protector circuits ideal for smart meters, surge protective devices, uninterruptible power supplies, and other power sources. These voltage dependent resistors range from voltages up to 1100VDC with a maximum energy absorption of 230 Joules and are well suited for surge protector circuits. Radial leaded MOV varistor disks come in diameters of 5 mm, 7 mm, 10 mm, 14 mm, and 20 mm.
metal oxide varistor disc - with radial leads and epoxy coating

List of Standard MOV Varistors / Metal-Oxide Varistors

Series Metal Oxide Varistor  Disk Size Specification Chart for Metal Oxide Varistor
5M 5mm 5M - Chart
7M 7mm 7M - Chart
10M 10mm 10M - Chart
14 M 14mm 14M - Chart
20 M 20mm 20M - Chart

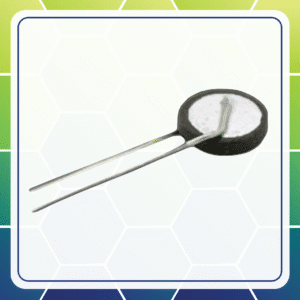

mov varistor with radial leads

5 mm OD MOV / Metal Oxide Varistor Radial Leaded Disks

ZnO Series Continuous Operating Voltage Maximum Power Dissipation Maximum Energy Absorption Max. Pulse Current (8/20µs) Typical Protection Level Typical Capacitance @ 1kHz Varistor Voltage
(Vdc) (Vrms) (W) (J) (A) (V) (A) (pf) (Vdc) (mAdc)
5M 20VB 31 25 0.01 0.7 100 77 1 850 35.1 to 42.9 1
5M 25VB 35 30 0.01 0.9 100 93 1 720 42.3 to 51.7 1
5M 3OVB 45 35 0.01 1.1 100 110 1 620 50.4 to 61.6 1
5M 35VB 56 42 0.01 1.3 100 135 1 520 61.2 to 74.8 1
5M 40VB 65 50 0.1 1.8 400 135 5 300 73.8 to 90.2 1
5M 55VB 85 60 0.1 2.2 400 165 5 250 90to 110 1
5M 65VB 100 75 0.1 2.5 400 200 5 210 108 to 132 1
5M 80VB 125 95 0.1 3.4 400 250 5 185 135 to 165 1
5M 90VB 140 110 0.1 3.6 400 300 5 155 162 to 198 1
5M 110VB 180 140 0.1 4.5 400 360 5 125 198 to 242 1
5M 130VB 200 150 0.1 4.9 400 395 5 115 216 to 264 1
5M 140VB 225 175 0.1 5.6 400 455 5 100 243 to 297 1
5M 170VB 270 205 0.1 7.2 400 595 5 70 297 to 363 1
5M 200VB 300 230 0.1 8.2 400 650 5 65 351 to 429 1
5M 220VB 325 250 0.1 8.6 400 710 5 60 378 to 462 1
5M 240VB 345 265 0.1 8.6 400 710 5 60 405 to 495 1
5M 250VB 364 280 0.1 9.6 400 775 5 55 423 to 517 1
5M 300VB 429 330 0.1 11 400 840 5 50 504 to 616 1
5M 340VB 494 380 0.1 13 400 1025 5 45 576 to 704 1
5M 380VB 546 420 0.1 16 400 1180 5 37 639 to 781 1
5M 420VB 598 460 0.1 18 400 1240 5 35 702 to 858 1

7 mm OD MOV / Metal Oxide Varistor Radial Leaded Disks

ZnO Series Continuous Operating Voltage Maximum Power Dissipation Maximum Energy Absorption Max. Pulse Current (8/20µs) Typical Protection Level Typical Capacitance @ 1kHz Varistor Voltage
(Vdc) (Vrms) (W) (J) (A) (V) (A) (pf) (Vdc) (mAdc)
7M 20VB 31 25 0.02 1.6 250 77 2.5 1400 35.1 to 42.9 1
7M 25VB 35 30 0.02 2 250 93 2.5 1200 42.3 to 51.7 1
7M 3OVB 45 35 0.02 2.5 250 110 2.5 1050 50.4 to 61.6 1
7M 35VB 56 42 0.02 3 250 135 2.5 900 61.2 to 74.8 1
7M 40VB 65 50 0.02 4.2 250 135 2.5 530 73.8 to 90.2 1
7M 55VB 85 60 0.02 4.8 250 165 2.5 480 90to 110 1
7M 65VB 100 75 0.02 5.9 250 200 2.5 430 108 to 132 1
7M 80VB 125 95 0.02 7.6 250 250 2.5 335 135 to 165 1
7M 90VB 140 110 0.02 8.4 250 300 2.5 280 162 to 198 1
7M 110VB 180 140 0.02 10 .0 250 360 2.5 230 198 to 242 1
7M 130VB 200 150 0.02 11 250 395 2.5 210 216 to 264 1
7M 140VB 225 175 0.02 13 250 455 2.5 190 243 to 297 1
7M 170VB 270 205 0.02 17 250 595 2.5 130 297 to 363 1
7M 200VB 300 230 0.02 19 250 650 2.5 120 351 to 429 1
7M 220VB 325 250 0.02 21 250 710 2.5 110 378 to 462 1
7M 240VB 345 265 0.02 21 250 710 2.5 110 405 to 495 1
7M 250VB 364 280 0.02 23 250 775 2.5 100 423 to 517 1
7M 300VB 429 330 0.02 25 .0 250 840 2.5 90 504 to 616 1
7M 340VB 494 380 0.02 28 250 1025 2.5 85 576 to 704 1
7M 380VB 546 420 0.02 34 250 1180 2.5 72 639 to 781 1
7M 420VB 598 460 0.25 36 1200 1240 10 70 702 to 858 1
7M 440VB 637 490 0.25 48 1200 1355 10 74 738 to 902 1
7M 540VB 780 600 0.25 60 .0 1200 1650 10 80 900 to 1100 1

10 mm OD MOV / Metal-Oxide Varistors Radial Leaded Disks

ZnO Series Continuous Operating Voltage Maximum Power Dissipation Maximum Energy Absorption Max. Pulse Current (8/20µs) Typical Protection Level Typical Capacitance @ 1kHz Varistor Voltage
(Vdc) (Vrms) (W) (J) (A) (V) (A) (pf) (Vdc) (mAdc)
10M 20VB 31 25 0.02 3.7 500 77 5 3200 35.1 to 42.9 1
10M 25VB 35 30 0.02 4.4 500 93 5 2750 42.3 to 51.7 1
10M 30VB 45 35 0.02 5.4 500 110 5 2400 50.4 to 61.6 1
10M 35VB 56 42 0.02 6.4 500 135 5 2100 61.2 to 74.8 1
10M 40VB 65 50 0.4 8.4 2500 135 25 950 73.8 to 90.2 1
10M 55VB 85 60 0.4 10 2500 165 25 870 90 to 110 1
10M 65VB 100 75 0.4 12 2500 200 25 720 108 to 132 1
10M 80VB 125 95 0.4 15 2500 250 25 690 135 to 165 1
10M 90VB 140 110 0.4 18 2500 300 25 580 162 to 198 1
10M 110VB 180 140 0.4 22 2500 360 25 470 198 to 242 1
10M 130VB 200 150 0.4 24 2500 395 25 430 216 to 264 1
10M 140VB 225 175 0.4 28 2500 455 25 380 243 to 297 1
10M 170VB 270 205 0.4 36 2500 595 25 265 297 to 363 1
10M 200VB 300 230 0.4 38 2500 650 25 245 351 to 429 1
10M 220VB 325 250 0.4 43 2500 710 25 220 378 to 462 1
10M 240 VB 345 265 0.4 43 2500 710 25 220 405 to 495 1
10M 250VB 364 280 0.4 47 2500 775 25 200 423 to 517 1
10M 300VB 429 330 0.4 50 2500 840 25 185 504 to 616 1
10M 340VB 494 380 0.4 40 2500 1025 25 175 576 to 704 1
10M 380VB 546 420 0.4 47 2500 1180 25 158 639 to 781 1
10M 420VB 598 460 0.4 50 2500 1240 25 150 702 to 858 1
10M 440VB 637 490 0.4 60 2500 1355 25 140 738 to 902 1
10M 540VB 780 600 0.4 68 2500 1650 25 120 900 to 1100 1

14 mm OD MOV / Metal-Oxide Varistors Radial Leaded Disks

ZnO Series Continuous Operating Voltage Maximum Power Dissipation Maximum Energy Absorption Max. Pulse Current (8/20µs) Typical Protection Level Typical Capacitance @ 1kHz Varistor Voltage
(Vdc) (Vrms) (W) (J) (A) (V) (A) (pf) (Vdc) (mAdc)
14M 20VB 31 25 0.1 7 1000 77 10 5450 35.1 to 42.9 1
14M 25VB 35 30 0.1 9 1000 93 10 4950 42 .3 to 51.7 1
14M 30VB 45 35 0.1 10 1000 110 10 4200 50.4 to 61.6 1
14M 35VB 56 42 0.1 13 1000 135 10 3550 61.2 to 74.8 1
14M 40VB 65 50 0.6 15 4500 135 50 1800 73.8 to 90.2 1
14M 55VB 85 60 0.6 17 4500 165 50 1650 90 to 110 1
14M 65VB 100 75 0.6 20 4500 200 50 1370 108 to 132 1
14M 80VB 125 95 0.6 25 4500 250 50 1200 135 to 165 1
14M 90VB 140 110 0.6 30 4500 300 50 1000 162 to 198 1
14M 110VB 150 140 0.6 36 4500 360 50 820 198 to 242 1
14M 130VB 200 150 0.6 40 4500 395 50 750 216 to 264 1
14M 140VB 225 175 0.6 46 4500 455 50 670 243 to 297 1
14M 170VB 270 205 0.6 60 4500 595 50 530 297 to 363 1
14M 200VB 300 230 0.6 65 4500 650 50 490 351 to 429 1
14M 220VB 325 250 0.6 71 4500 710 50 440 378 to 462 1
14M 240VB 345 265 0.6 71 4500 710 50 440 405 to 495 1
14M 250VB 364 280 0.6 76 4500 775 50 400 423 to 517 1
14M 300V8 429 330 0.6 84 4500 840 50 370 504 to 616 1
14M 340VB 494 380 0.6 80 4500 1025 50 315 576 to 704 1
14M 380VB 546 420 0.6 95 4500 1180 50 275 639 to 781 1
14M 420VB 598 460 0.6 100 4500 1240 50 260 702 to 858 1
14M 440VB 637 490 0.6 120 4500 1355 50 240 738 to 902 1
14M 540VB 780 600 0.6 130 4500 1650 50 200 900 to 1100 1

20 mm OD MOV / Metal Oxide Varistor Radial Leaded Disks

ZnO Series Continuous Operating Voltage Maximum Power Dissipation Maximum Energy Absorption Max. Pulse Current (8/20µs) Typical Protection Level Typical Capacitance @ 1kHz Varistor Voltage
(Vdc) (Vrms) (W) (J) (A) (V) (A) (pf) (Vdc) (mAdc)
20M 20VB 31 25 0 .20 22 2000 77 20 11100 35.1 to 42.9 1
20M 25V8 35 30 0 .20 26 2000 93 20 9350 42.3 to 51.7 1
20M 30VB 45 35 0 .20 33 2000 110 20 8000 50.4 to 61.6 1
20M 35VB 56 42 0 .20 37 2000 135 20 6750 61.2 to 74.8 1
20M 40VB 65 50 1 27 6500 135 3800 73.8 to 90.2 1
20M 55VB 85 60 1 33 6500 165 100 3600 90 to 110 1
20M 65VB 100 75 1 40 6500 200 100 2900 108 to 132 1
20M aoVB 125 95 1 50 6500 250 100 2500 135 to 165 1
20M 90VB 140 110 1 60 6500 300 100 2100 162 to 198 1
20M 110VB 180 140 1 78 8000 360 100 1700 198 to 242 1
20M 130V8 200 150 1 85 8000 395 100 1550 216 to 264 1
20M I40VB 225 175 1 98 8000 455 100 1350 243 to 297 1
20M 170VB 270 205 1 130 .0 8000 595 100 1000 297 to 363 1
20M 200VB 300 230 1 140 8000 650 100 940 351 to 429 1
20M 220VB 325 250 1 151 8000 710 100 850 378 to 462 1
20M 240V8 345 265 1 151 .0 8000 100 850 405 to 495 1
20M 250V8 364 280 1 173 8000 775 100 780 423 to 517 1
20M 300VB 429 330 1 18 4 . 0 8000 840 100 720 504 to 616 1
20M 340V8 494 380 1 150 8000 1025 100 600 576 to 704 1
20M 380V8 546 420 1 185 8000 1180 100 530 639 to 781 1
20M 420VB 598 460 1 195 .0 8000 1240 100 500 702 to 858 1
20M 440VB 637 490 1 190 6500 1355 100 460 738 to 902 1
20M 540VB 780 600 1 230 6500 1650 100 380 900 to 1100 1
