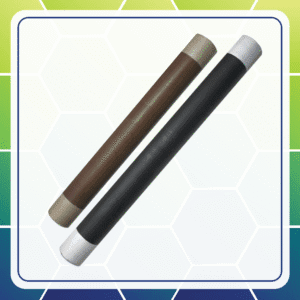

High voltage resistor
Silicon Metal Resistors are similar to ceramic composite resistors and have advantages in pulsed duty, requiring combinations of high peak power or high voltage with low inductance such as a precharge circuit. Silicon Metal Resistors have a much higher continuous temperature rating of 350°C as opposed to 250°C for ceramic resistors. This extended temperature range makes them suited for EV precharge circuits and inrush limiting applications that require a pre-charge resistor. The simple construction consists of silicon and metal conductive particles dispersed throughout the element body, metal contacts on the ends of the body, and for high voltage resistor applications an anti-track coating. The resistive silicon metal element is manufactured using a specific mixture of materials suited to the bulk resistivity of the high energy resistor application.

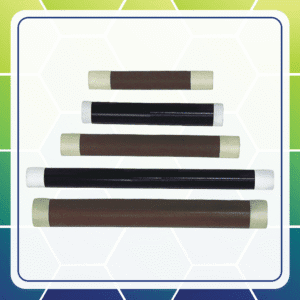

Silicon resistor
Selection of the proper material resistivities in the composition mix varies among several options to allow the properties to be controlled and tailored to the high voltage resistor/ high energy resistors application. Once mixed, the material is granulated and pressed into the specific shape needed. This produces a high-temperature and electrically conductive bulk silicon metal linear resistor. To produce the electrical contacts, aluminum, copper, or brass is flame sprayed onto the flat surfaces of the high energy resistors. In the case where connections are soldered to the metallization, the further addition of Sn, Zn, PD, Cu, Ag, Zr, and Co creates a metal surface that is electrically conductive and mechanically highly reliable. For high energy resistor discs or high voltage resistor rods and tubes, an anti-track coating is applied to the edges to improve dielectric withstand. A wide variety of geometries and range of resistivity can handle hundreds of Joules to Mega Joules of energy. These non inductive power resistors (ceramic resistors) are robust, having a constant mechanical strength, allowing for good compression specifications and the ability to absorb transmitted mechanical shock, as long as a direct impact is avoided.

Technical Advantage of Silicon Metal Resistors

High energy resistors mounting tab
Silicon Metal Resistors are ideal for applications that require a non inductive resistor to operate at high voltage providing high energy absorption, at an elevated temperature like those found in a precharge circuit resistor. Compared to film or wire wound resistors where the resistive element is only a small fraction of the total mass of the component, the bulk construction of Silicon Metal Resistors concentrates most of the component mass into the resistive element allowing high energy events to be uniformly distributed through the entire mass of the material like similar to a carbon composition resistor or a ceramic resistor (ceramic composite resistor), there is no film or wire to fail. This bestows the capacity for high peak power and high reliability in pulsed or surge-prone duty. Because 100% of the active material is conductive, it produces a high energy resistor with minimum size for pulse or high energy applications like a pre charge circuit. Bulk resistors are inherently non inductive resistors, and offer high energy density.
Compared to carbon composite resistors, ceramic composite resistors and Silicon Metal Resistors dissipate heat more rapidly, in the case of Silicon Metal Resistors and even higher average power can be tolerated. The high-temperature capability of the silicon resistor also allows much more energy density than carbon composition resistors and even ceramic resistors, which means smaller or fewer parts, resulting in better reliability and lowered cost. Like ceramic resistors, Silicon Metal Resistors also exhibit better stability under extreme voltage and temperature. Like other "bulk" resistors, they are non inductive. This makes them ideal for pre-charge resistors in a precharge circuit for batteries or high-frequency applications.

Typical Silicon Metal Resistors Applications

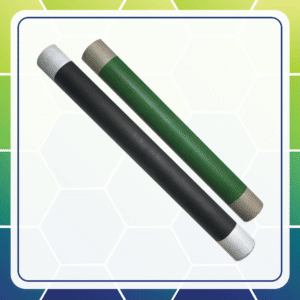

Precharge resistor
  • EV precharge resistor
  • High-frequency Laser pulse application
  • Capacitor discharge
  • Non inductive resistor, non-capacitive as a load dump
  • Amplifier applications require a non inductive power resistor.
  • Precharge resistor circuit
  • Generators and wind turbines as load dump
  • Snubber Application
  • Dummy load
  • Overvoltage protection
  • Precharge circuit for batteries

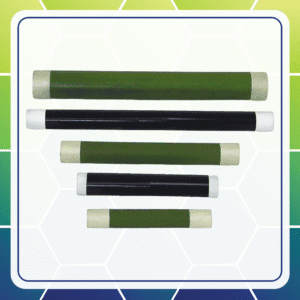

Non inductive resistor

Silicon Metal Resistors Are Ideal For Under-Oil Use

Most resistive elements are not well suited for the combination of high voltage and high energy. When traditional resistive elements (wound or film type) are used under oil, high energies events result in large temperature rises in the conductive element. This high heat flux is difficult to dissipate due to the low surface area of the element. The high heat produced in these small elements also introduces the risk of oil degradation. In the case of Biodegradable oils, which are becoming more commonplace, they have higher moisture and can have more hydrocarbon gas dissolved in the oil. This can result in oil degradation affecting key thermal and electrical specifications. Silicon Metal Resistors have a much lower temperature rise for a given high energy event, since 100% of the active material is conductive it allows energy and power to be uniformly distributed through the entire mass. The silicon metal linear resistor also has a much larger surface area allowing thermal energy to be more readily conducted into the oil. Performance under most oils is also well known.

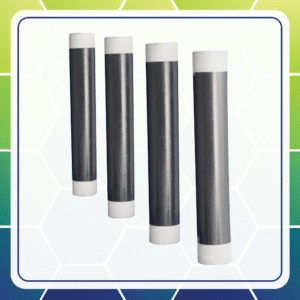

Silicon carbide varistor rods tubes

SILICON RESISTOR - SI-METAL CERAMIC COMPOSITE RESISTORS

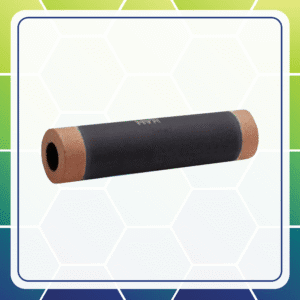

Silicon metal linear resistors
Silicon Metal Resistors (Si-Metal) are Silicon Metal Resistors that have 100% active material, extremely high surge energy rating, and provide an extended operating temperature greater than traditional ceramic composite resistors. These Siico resistors allow a continuous temperature rating of 350°C and a short duration temperature rating of 390°C. Our Silicon Metal Resistors are suited for Air, Oil and SF6 environments and applications which require high voltage withstand and high current density. The unique construction of Silicon Metal Resistors allows for the highest continuous power rating and high energy absorption. Silicon metal linear resistor failures occur at 600°C and above. Common geometries of Silicon Metal Resistors are rods and tubes of varying sizes. As with other ceramic resistors and Silicon Metal Resistors may be connected in series or parallel for various total energy, electrical values, and power ratings.

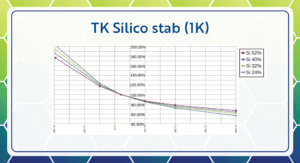

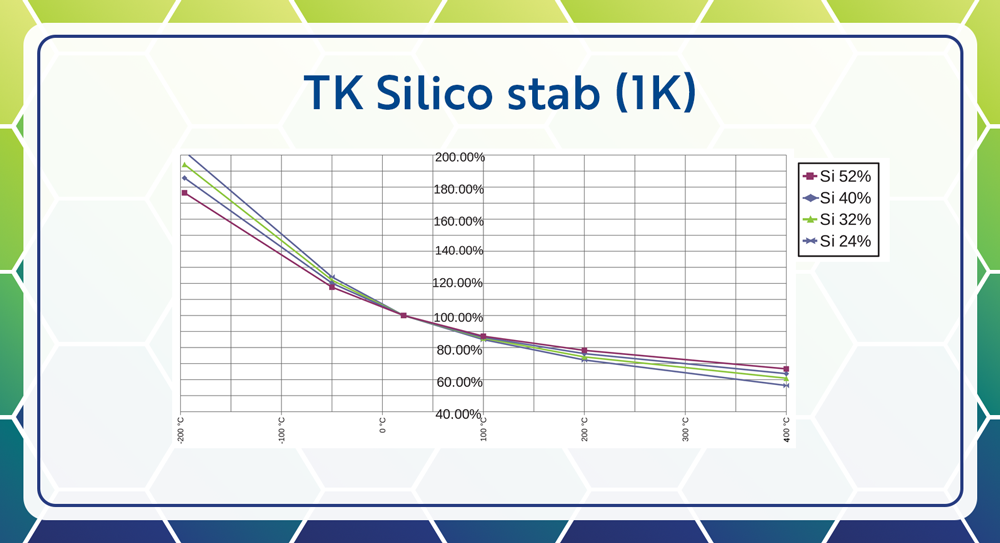

Silicon Resistor Material Characteristics
  Silicon resistor material
Mechanical Parameters - Rod and Tube High Energy Resistors
Description Abbreviation Range
Outside Diameter Do 10 to 50 mm
Inside Diameter Di 0 to 36 mm
Length L 50 to 600 mm
Density N/A 1.9 g / cm³ to 2.0 g / cm³
Electrical Parameters - Rod and Tube High Energy Resistors
Item Range
Operating Temperature Range -40 to 350°C at full load, up to 370°C peak
Ohmic Range 0.1 to 500 Ω/cm
Maximum Pulse Residual Voltage 4.3 x 1.2√(log(R x A x l)) kV/cm
Specific Heat Capacity Approximately 922 J/ (kg x K)
Inductance nH’s (non-inductive)
Thermal Conductivity 0.00424 W/ (cm² x K)
18mm OD Silicon Metal Linear Resistor Tubes Specifications
Outside Diameter Inside Diameter Maximum Length Material Type Maximum @ 20°C Maximum @ 20°C Maximum Pulse Voltage Ohmic Range
mm mm mm Abver W J V Ω
18 8 50 LT 6 740 3500 250 to 10000
18 8 50 MT 15 1220 2800 50 to 500
18 8 50 HT 28 1770 2400 1.0 to 100
18 8 100 LT 17 149 9800 500 to 20000
18 8 100 MT 40 2450 8000 100 to 1000
18 8 100 HT 76 3550 7000 2.0 to 200
18 8 200 LT 39 2990 23100 1000 to 40000
18 8 200 MT 91 4910 18900 200 to 2000
18 8 200 HT 171 7110 16700 4.0 to 400
25mm OD Silicon Metal Linear Resistor Tubes Specifications
Outside Diameter Inside Diameter Maximum Length Material Type Maximum @ 20°C Maximum @ 20°C Maximum Pulse Voltage Ohmic Range
mm mm mm Abver W J V Ω
25 13 50 LT 9 1310 3300 150 to 6000
25 13 50 MT 21 2150 2600 30 to 300
25 13 50 HT 39 3110 2200 0.5 to 50
25 13 100 LT 24 2620 9200 300 to 12000
25 13 100 MT 56 4310 7500 60 to 600
25 13 100 HT 112 6230 6400 1.0 to 100
25 13 200 LT 54 5250 21700 600 to 24000
25 13 200 MT 127 8620 17800 120 to 1200
25 13 200 HT 238 12470 15500 2.0 to 200
25 13 300 LT 85 7880 34700 900 to 36000
25 13 300 MT 198 12930 28600 180 to 1800
25 13 300 HT 370 18710 24900 3.0 to 300
25 13 400 LT 115 11510 47900 1200 to 48000
25 13 400 MT 269 17240 39600 240 to 2400
25 13 400 HT 503 24950 34600 4.0 to 400
38mm OD Silicon Metal Linear Resistor Tubes Specifications
Outside Diameter Inside Diameter Maximum Length Material Type Maximum @ 20°C Maximum @ 20°C Maximum Pulse Voltage Ohmic Range
mm mm mm Abver W J V Ω
38 25 300 LT 129 14160 32600 700 to 30000
38 25 300 MT 301 23220 27000 150 to 1500
38 25 300 HT 563 33510 23700 3.0 to 250
38 25 450 LT 199 21240 51300 1100 to 45000
38 25 450 MT 463 34840 42700 225 to 2250
38 25 450 HT 865 50410 37500 4.5 to 375
38 25 600 LT 268 28320 70300 1400 to 60000
38 25 600 MT 625 46450 58700 300 to 3000
38 25 600 HT 1166 67220 51800 6.0 to 500
50mm OD Silicon Metal Linear Resistor Tubes Specifications
Outside Diameter Inside Diameter Maximum Length Material Type Maximum @ 20°C Maximum @ 20°C Maximum Pulse Voltage Ohmic Range
mm mm mm Abver W J V Ω
50 36 300 LT 146 20820 30900 500 to 20000
50 36 300 MT 340 34140 25600 100 to 1000
50 36 300 HT 635 49410 22800 1.5 to 200
50 36 450 LT 237 31230 48600 750 to 30000
50 36 450 MT 552 51210 40500 150 to 1500
50 36 450 HT 1032 74110 36100 2.25 to 300
50 36 600 LT 328 41640 66700 1000 to 40000
50 36 600 MT 765 68290 55700 200 to 2000
50 36 600 HT 1429 98820 49700 3.0 to 400
